TT Silent-M 250mm 1330m3/h Extractor by Winflex

New WINFLEX TT Silent-M line

The fan is enclosed in a specially designed sound-insulating housing that ensures quiet fan operation in combination with high aerodynamic characteristics.

Silent-M fans combine the large capacities and high performance characteristics of both axial and centrifugal fans, providing a powerful, high-pressure airflow.

The TT Silent-M are recommended as an extractor/intractor for people with high demands on noise level and temperature (greenhouses).

Technical Characteristics:

• Diameter: 250 mm
• Dimensions: Length 658 mm, width 445 mm, height 360 mm
• Power: 1050 m³/h at minimum power and 1330 m³/h at maximum position
• Consumption: 127W at minimum power and 178W at maximum position.

Design:

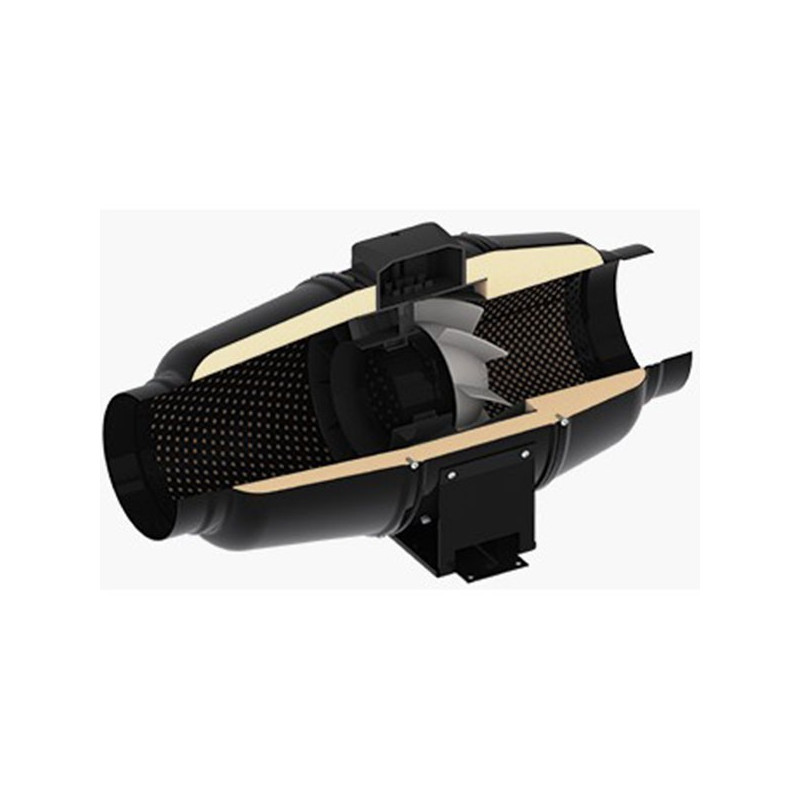

The outer casing is made of polymer-coated steel. The housing is internally soundproofed with a 50 mm layer of mineral wool. The housing is specially perforated for soundproofing.
The fan housing is equipped with an airtight terminal box for connection to the electrical network.

Motor:
The motor is equipped with thermal switches to prevent the motor from overheating and protect it.
Lifespan up to 40,000 hours in non-stop operation.

Mounting:
The fan can be mounted anywhere and at any angle in the duct system. Multiple fans can be
installed in a system in parallel to achieve maximum airflow.
The fan housing is equipped with hooks for mounting to the floor, wall, or ceiling.
